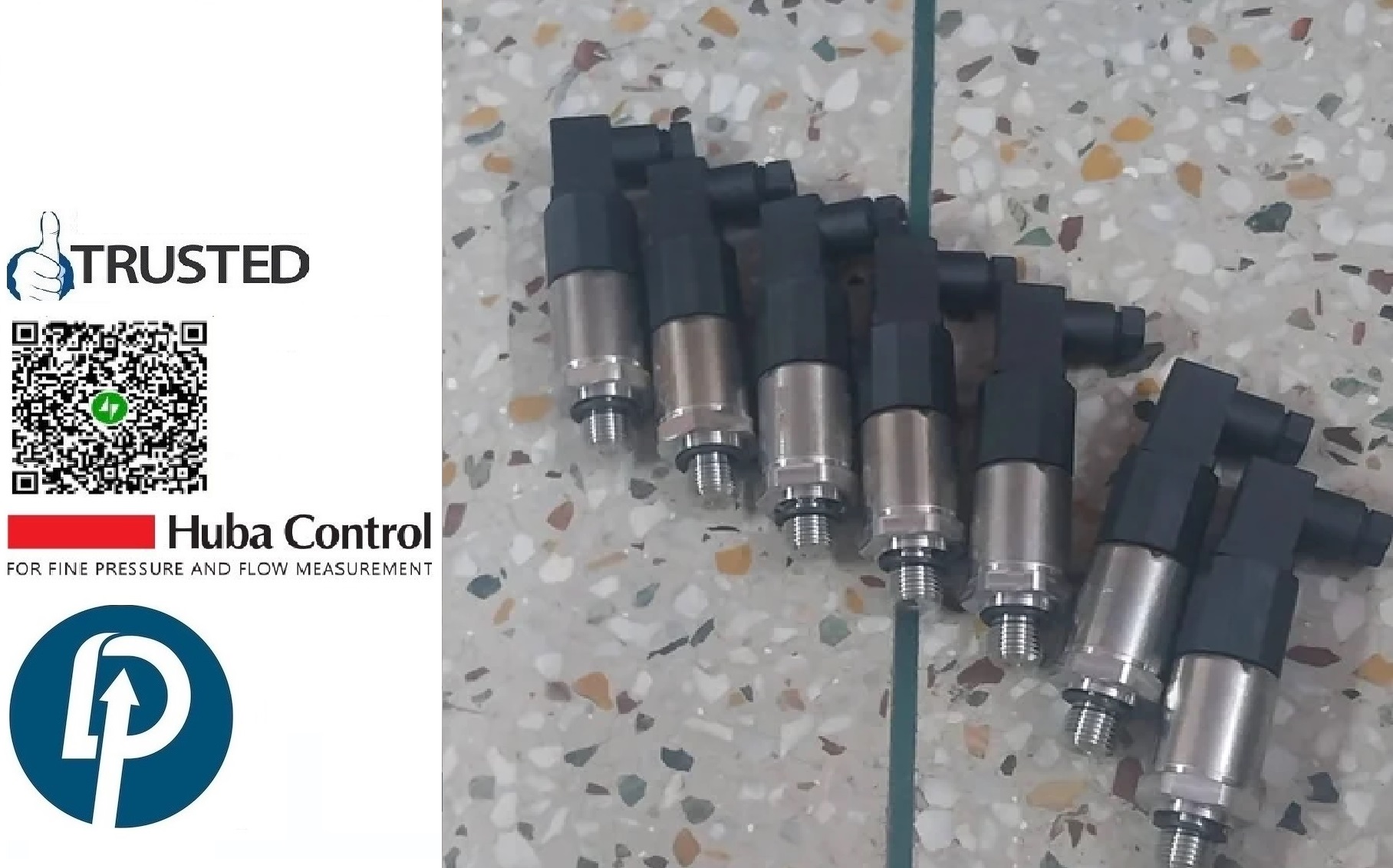

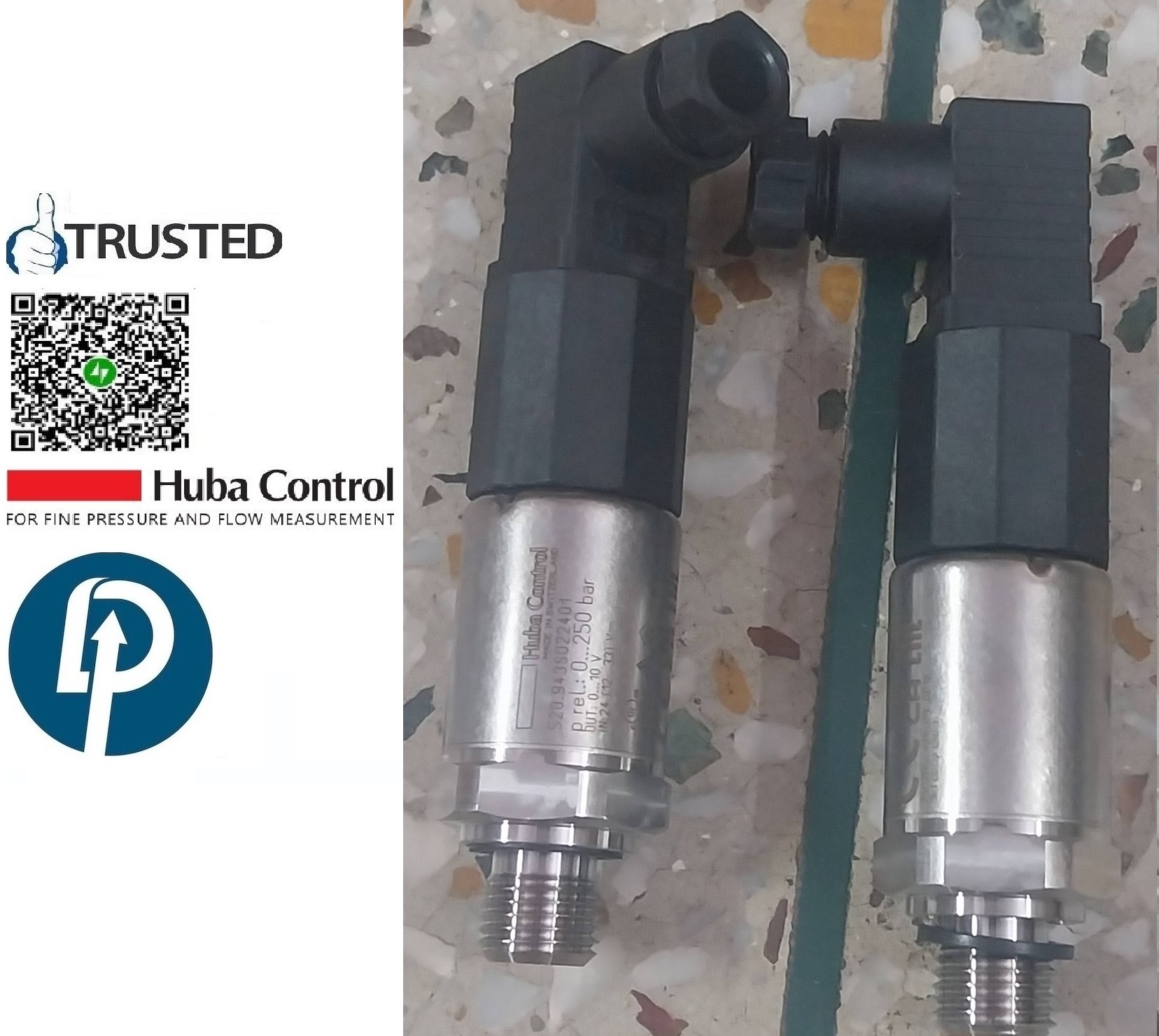

- Relative Pressure Transmitter
- Type – 520
- Manufacturer – HUBA CONTROL
- Model – 520.930S022401
- RANGE – 0-10 BAR
- OUTPUT – 0 To 10 VDC
- Supply – 24 (12….33) V
- CONNECTION – 1/4″ NPT 304 SS
- COUNTRY OF ORIGIN – INDIA
The Compact Type 520 Pressure Transmitter Is Based Upon The Huba Control Developed Thick Film Technology Where The Pressure Measuring Cell Is Fully Welded.
This Transmitter Meets The High Burst Protection Demands And Is Suitable For The Use In All Types Of Refrigerants Including Ammonia.
Pressure Range:
- -1 … 9 bar / 0 … 2.5 – 1000 bar
- Compact,Rugged Construction
- Welded Without Sealing parts,No Elastomer Seals
- Large Selection Of Connections Available.
- Saving Time By Quick Cable Mounting By The Customer With Swift Connector
General Features:
- Compact, Rugged Construction
- Large Selection Of Connections Available
- Welded Without Sealing Parts, No Elastomer Seals
- Medium: Liquids, Gases And Refrigerants (Including Ammonia)
- Saving Time By Quick Cable Mounting By The Customer With Swift Connector
| SERIES | Type 520 |
| PRESSURE RANGE | 0 … 10 BAR |
| POWER SUPPLY | 7 – 33 VDC |
| OUTPUT DC | 0 To 10 VDC |
| ELECTRICAL CONNECTION | M12x1 |
| DESCRIPTION | Pressure Transmitter |
| PRESSURE CONNECTION | G 1/4 |
| INDEX PROTECTION IP | IP67 |
| ACCURACY | ± 0.3 % fs |
| MEDIUM TEMPERATURE RANGE | -15 … +125 °C |
| RESPONSE TIME | < 2 ms, (1 ms typical) |
| MATERIAL | Connection Stainless Steel 1.4404 / AISI 316L |
| DIMENSIONS (MM) | 24 x 46.7 MM |
| CONFORMITY | EN 61326-2-3 / IEC 68-2-27 / IEC 68-2-29 / IEC 68-2-6 / UL E325110 |
Additional Information:
- Item Code: Huba Control Pressure Transmitter Model 520.930S022401 RANGE 0-10 BAR Output 0 To 10 VDC
